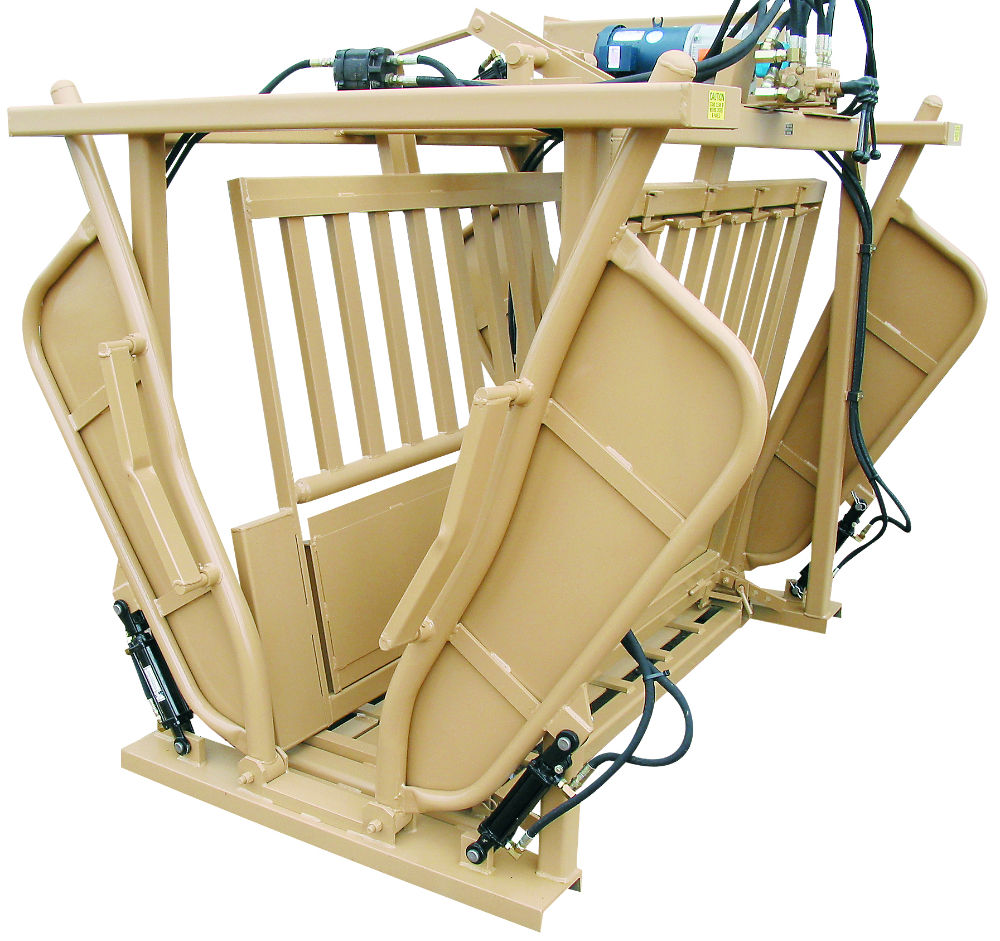

Extended Length Chute Inside Length = 92”
Overall Length = 102”
Inside Height Clearance = 66”
Weight = 2900 lbs.
Frame: 3” x 2” x ¼” Wall Rectangular Tubing
Floor: 3/16” Thick Solid Steel Plate w/Treads
End Structure Bottom: 6” Heavy Duty Channel
Head Gates 2 ½” Prime Pipe W/12 Ga. Sheeting
Head Gate Bushings: 3” UHMW Bushing 2” CRR Hard Machined Shaft Pivot Pin
Side Panels: 3” x 2” x ¼” Rectangular Tube Frame 3” Wide Rectangular Let Downs Pivoting on ¼” Thick Wall Tube with Auto Latches
Side Panel Doors: Full Access on Both Sides with a 3” Rectangular Tube Frame with 12ga Sheeting and 1" dia Hinges
Center Squeeze Linkage  2" CRR solid shaft with Machined Hardened Bushing Linkage strap made of 1/2" thick flat,steel bushings made of 1 x 3 Machined bushings.
Motor TEFC 3hp 220volt or Honda gas powered
Side Panel Doors: Full Access on Both Sides  with a 3” Rectangular Tube Frame with 12ga Sheeting and 1" dia Hinges
Hydraulics: Industrial Grade Valve Body Factory Set Safe Operating Pressure with
Mounted Oil Filter, Motor: TEFC 3HP (220 Volt) Single Phase with a C-faced Mounted 10 GPM Vane Pump
